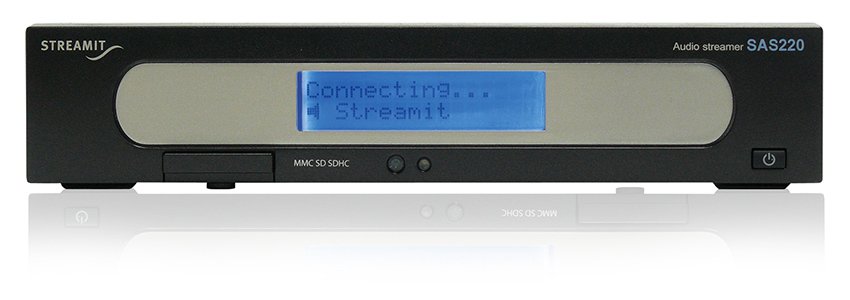

Streamit SAS220 Audio Streamer - $699

Deliver live digital audio to any internet connected device, without a PC. Simply connect your XLR cables to the Streamit SAS220, configure the device with your Server Room account settings and you're ready to broadcast online.

SAS220

Inputs and Encoding

The Streamit SAS2200 uses XLR audio inputs, allowing you to connect it directly to your studio grade equipment, without the use of adapters. Your analog audio can be encoded into digital MP3 or Ogg Vorbis and delivered to any SHOUTcast or Icecast streaming server for distribution.

Applications

  • Professional Digital Audio Encoding
  • SHOUTcast or Icecast Source
  • Stream point to point
  • MP3 and OGG Vorbis Encoding

Features

  • Stand-alone encoder, no PC required
  • User-friendly browser based interface
  • Professional grade reliability
  • XLR audio inputs
  • Headphone signal monitoring
  • Rack mountable

Easy Deployment

The Streamit SAS220, makes it easy to deploy your radio streaming services. Its user-friendly browser interface allows you to connect the device to our servers in just a few minutes, so you can begin streaming right away. If you already have an accounts with us, we can remotely assist you with the setup.

Technical Specifications

SIZE AND WEIGHTS
  • Sizes (b x d x h mm) 220 x 125 x 45
  • Size of packaging (b x d x h mm) 310 x 220 x 100
  • Weight (g) 800
  • Total weight in packaging (g) 1300
SPECIFICATIONS
  • Stereo encoder Ogg Vorbis, MP3
  • Sample frequency (max. kHz) 48
  • Bitrate (stereo, max. kbps) 256
  • Ethernet controller 10 Mbps
  • Audio input impedance > 20 kOhms (balanced)
  • Common mode rejection ratio > 50 dB8
  • Input level (nominal, clipping) 6 / 15 dBu
  • LCD-display 62 x 15 mm, 2 x 16 characters
  • LCD-display with backlight / color yes/blue
  • Languages English
  • Real-time clock yes
  • Firmware upgrade on-line yes
  • Compatible with Icecast yes
  • Compatible with Shoutcast yes
  • SD memory card / back-up no
  • Power adapter 100 - 240 VAC /
  • Power consumption
  • - standby (typical W) 2
  • - operation (typical W) 3
  • Streaming clients 2 (max)

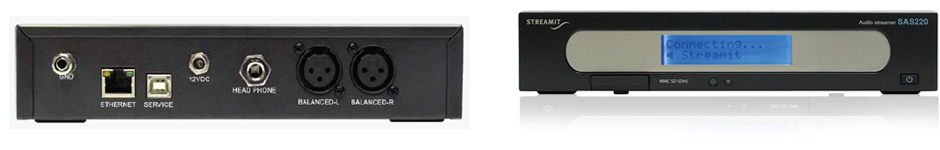

INPUTS
  • Ethernet 10 Base-T RJ45
  • Power in 12 Vdc Screw-jack
  • Service-connector in/out USB-B
  • Infrared control yes
  • RS232 yes
  • Balanced inputs 2x XLR female
OUTPUTS
  • Stereo headphone / line output 6,3 mm 2 x RCA
TEMPERATURE RANGE
  • Operation (°C) +10 to +35
  • Storage packed (°C) -25 to +50
  • Storage unpacked (°C) 0 to +45
ACCESSORIES
  • 19”-rack mounting kit MK (optional)
SIGNAL SPECIFICATION OF COMPLETE SOLUTION
  • Amplitude response < +/- 1 dB, from 20 Hz - 20 kHz
  • Total harmonic distortion < 0,15%
  • Total intermodulation distortion < 0,15%
  • Signal to noise ratio > 75 dB relative to 0 dBFS (Unweighted)
  • Left/right channel level difference < 1 dB, from 20 Hz - 20 kHz
  • Left/right channel phase difference < 5 °, from 20 Hz - 20 kHz
  • Left/right channel separation stereo mode > 70 dB, from 20 Hz - 20 kHz
  • Audio level non-linearity < 0.4dB, from 20 Hz - 20 kHz @ -40dB0s
  • Signal to hum ratio > 80 dB, RMS from
  • Minimum delay @ 128 / 64 / 16 kbps 0,7 / 1,5 / 3,2 s
